產品主要用途/Main purposes of the product
反應鍋由鍋體、鍋蓋、攪伴器、電加熱油夾管、支承及傳動裝置、軸封裝置、溢油槽等組成，并配有電加熱棒及測溫、測壓表。
由于用戶因生產工藝、操作條件不盡相同，攪拌形成一般有錨式、漿式、渦輪式、推進式或框式。支承座有懸掛或支承式二種。
夾套內放置導熱油，由電熱棒加熱，夾套上開有進、排油、溢測量、放空及電熱棒、測溫等接管孔。夾套外壁焊接支座，鍋體下部開有放料口。 |

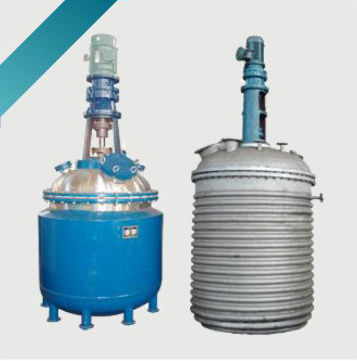

The reaction vessel is composed by main body, cover, stirrer, electric heating oil clip pipe, supporting and driving device, shaft sealing device and oil overflow tank, etc. It is also equipped with electric heating bar and temperature, pressure measuring gauge.
The stirring form includes anchoring type, pulp type, turbo-type, push type or frame type according to different production processes and operation conditions. The supporting seat has two types: suspended type or supporting type.
Heat conduction oil is filled inside the jacket and heated by the electric heating bar. There are openings on the jacket for pipe connecting for oil inlet, oil outlet, overflow measuring, venting& electric heating bar and temperature measuring. The external wall of the jacket is welded with support and there’s material discharging port at lower part of the vessel body. |
|
 |
|

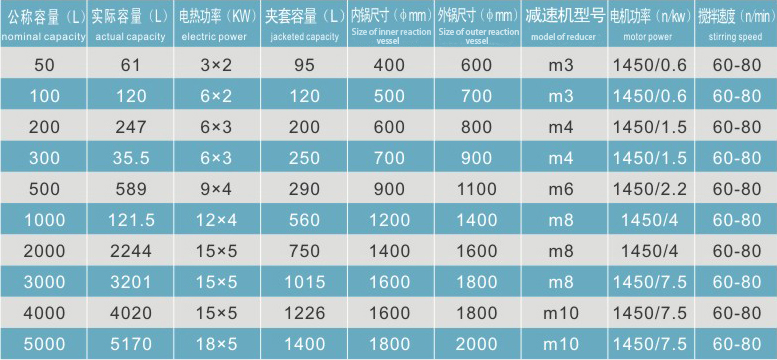

主要技術參數參考表/Reference table of main technical parameter |
|
