產品主要用途/Main Purposes |
主要適用于制藥、食品、化工等工業部門對液料的濃縮。并且亦能回收酒精和簡単的回流提取。
It is mainly used for liquid concentrating in pharmaceutical, food and chemical industry. Besides it may also be used for alcohol recycling and simple counter-flow extraction.
|
|
產品結構/Product structure |
本設備主要包活濃縮罐、冷凝器、汽液分離器、第二冷凝器、冷卻器、受液桶六個部件組成，全部由不銹鋼制造。濃縮罐為夾套結構，冷凝器為列管式，冷卻器為蛇管式。
This equipment is mainly composed by concentrator, primary condenser, vapor-liquid separator, primary condenser, cooler and liquid barrel. All the said six parts are made of stainless steel. The concentrator is of jacket structure; the condenser is of tabulation type and the cooler is of coiler type. |

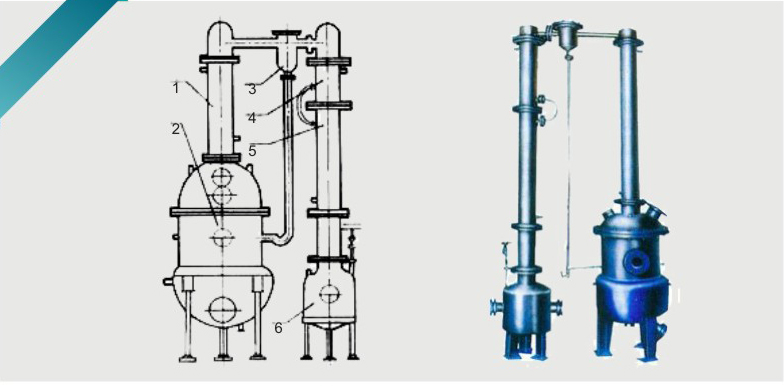

1、濃縮罐 2、冷凝器 3、汽液分離器 4、第二冷凝器 5、冷卻器 6、受液桶
1, concentrator 2, primary condenser 3, vapor-liquid separator 4, secondary condenser 5, cooler 6, the liquid barrel |
|

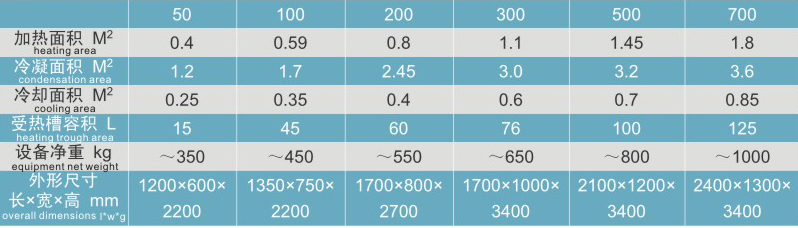

主要技術參數參考表/Reference table of main technical parameters |
|
